High Air Pressure Pneumatic Drill Rigs Farming Borehole 200 Mm Diameter

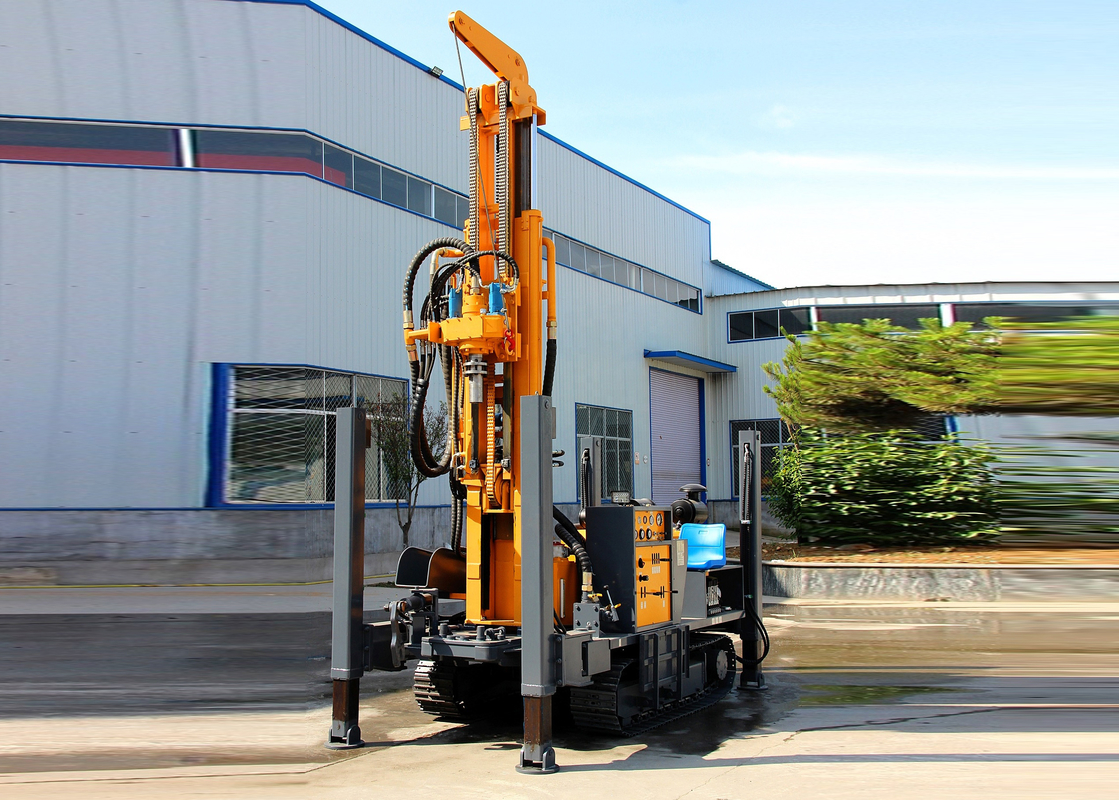

Large Image : High Air Pressure Pneumatic Drill Rigs Farming Borehole 200 Mm Diameter

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Water Well Drilling Rig	Model Number:	ST 200
Machine Type:	Drilling Equipment	Certification:	ISO
Hole Diameter:	Customized	Drilling Depths:	200 Meters
Condition:	New	Weight:	8.9 T
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption:	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min	After-sale Service:	Video Support
Highlight:	high air pressure pneumatic drill rigs , farming borehole pneumatic drill rigs , 200 mm diameter pneumatic drilling rig

High Air Pressure Pneumatic Drill Rigs Farming Borehole 200 Mm Diameter

Product Specifications

Attribute	Value
Product Name	Water Well Drilling Rig
Model Number	ST 200
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation torque	7500Nm, 983 N.m, 4200N.m, 3400mm
Air consumption	16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
After-sale service	video support

Product Description

High Air Pressure Farming Borehole 200 mm Diameter Pneumatic Drilling Rig

ST 200 Pneumatic Drilling Rig Description

ST 200 pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata. Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump.

Technical Parameters

Model	ST 200
Condition	New Condition
Type	Water Well Drilling Rig
Power Type	Diesel
Place of Origin	China
Brand Name	Shitan Machinery
Usage	Ore
Dimension(LWH)	6400MM2250MM2700MM
Weight	5800KG
Certification	ISO9000
Warranty	1 YEARS
Marketing Type	New Product 2020
Drilling diameter	90-152mm
Depth	25M
Rotary speed	0-90rpm
DTH	K40
Drilling Rods	762m+763m
Air consumption	13-20m3/min
Traveling speed	0-2.5km/h

Key Features

Hydraulically driven by diesel engine
Simple and clear dashboard
Crawler mounted structure for easy movement
Steel crawler chassis (rubber crawler option available for urban roads)
Four standard high legs
Direct loading capability for long transportation without lifting

Installation & Maintenance

We provide comprehensive installation services for complicated machinery, ensuring normal operation of construction machinery solutions. After installation, we conduct thorough machine inspections, equipment operation tests, and provide detailed testing data reports.

Quicksand Formation Solution

In case of quicksand formation, the viscosity of drilling fluid must be increased with bentonite content greater than 10%. A single seal is added to enhance wall building properties. Engineering solutions include reducing displacement to minimize erosion of convective sand layers, and using thick mud with viscosity greater than 80s before tripping out to ensure smooth operation of drilling equipment and electric logging casing.

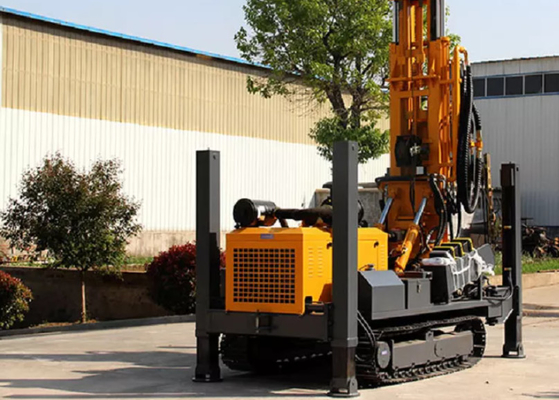

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
