76/89mm Drilling Rod and Pneumatic Drive System for 180 Meters Depth Water Well Drilling

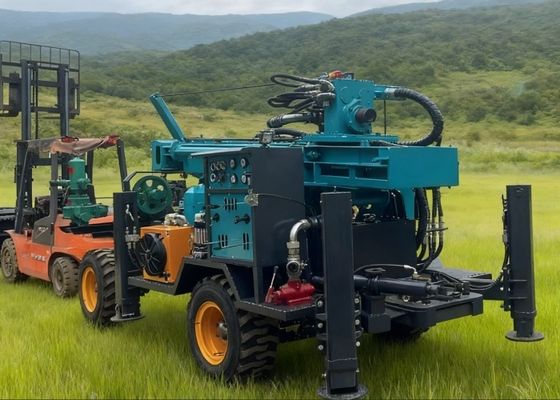

Large Image : 76/89mm Drilling Rod and Pneumatic Drive System for 180 Meters Depth Water Well Drilling

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO/CE/COC
Model Number:	ST-180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Deep Borehole Drilling Equipment	Model Number:	ST 180
Machine Type:	Water Borewell Drilling Rig	Certification:	ISO/CE/COC
Hole Diameter:	100-350 Mm	Drilling Depths:	180 Meters
Condition:	New	Drilling Rod:	76/89mm
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
After Sale Service:	Video Support	Color:	Yellow,Red And Blue
Highlight:	12-month warranty Pneumatic Drilling Rig , Pneumatic drive system Water Well Drilling Rig , Rocky layer blasting borehole Borehole Drilling Equipment

180 Meters Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

Product Description

ST 200 Pneumatic Drilling Rig for Rocky Layer Blasting Borehole. Professional-grade borehole drilling equipment designed for deep underground operations in rocky layers, with capability to drill up to 200 meters.

Key Features

Designed for deep well drilling up to 200 meters
Pneumatic drive system for powerful performance
Suitable for hydrogeological exploration and water well drilling
Excellent adaptability for complex geological conditions
ISO certified with 12-month warranty

Product Specifications

Attribute	Value
Model Number	Crawler-mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized (90-300mm)
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m
Air Consumption	16-30 M3/min, 20-100m3/min
Color Options	Yellow, Red and Blue

Technical Details

Power: Diesel
Dimensions: 6400MM * 2250MM * 2700MM
Weight: 5800KG
Rotary Speed: 0-90rpm
Travelling Speed: 0-2.5km/h
Drilling Rods: 76*2m + 76*3m

Equipment Components

Pneumatic System: Provides power to drive the rotation and impact of the drill bit
Drill Rod System: Multiple sections of drill rods for gradual penetration
Drill Bit: Various types available based on geological conditions
Control System: Adjusts drilling parameters like rotation speed and impact force
Debris Removal System: Uses compressed air or mud to keep borehole clean

Safety Precautions

Operators must undergo professional training
Wear safety helmets, gloves, and other protective equipment
Inspect surrounding environment before operation

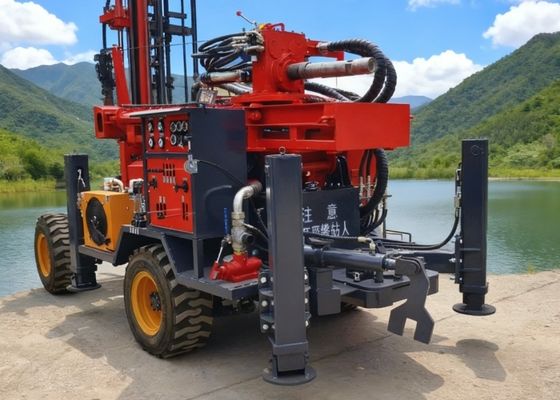

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
