Pneumatic Drilling Rig with 100-350mm Hole Diameter and Pneumatic Drive System for Rocky Strata

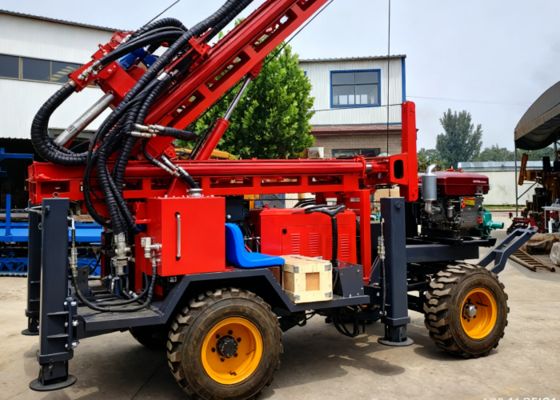

Large Image : Pneumatic Drilling Rig with 100-350mm Hole Diameter and Pneumatic Drive System for Rocky Strata

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO/CE/COC
Model Number:	ST-260

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Deep Borehole Drilling Equipment	Model Number:	ST 260
Machine Type:	Water Borewell Drilling Rig	Certification:	ISO/CE/COC
Hole Diameter:	100-350 Mm	Drilling Depths:	180 Meters
Condition:	New	Drilling Rod:	76/89mm
Warranty:	12 Months	Rotation Torque:	7500Nm, 983 N.m, 4200N.m, 3400mm
After Sale Service:	Video Support	Color:	Yellow,Red And Blue
Highlight:	100-350mm Hole Diameter Pneumatic Drilling Rig , Pneumatic Drive System Borewell Drilling Equipment , Rocky Strata Specialized Deep Borehole Drilling Equipment

Large Torque Diesel Engine Powerful Borewell Drilling Equipment High Efficiency 260 Meters

ST 260 Pneumatic Drilling Rig - Premium Blasting Borehole Solution Designed for Rocky Strata. This high-performance rig is specialized in underground deep drilling (max. 180m), adopting advanced pneumatic technology to achieve superior efficiency in rock penetration for blasting projects.

Key Features

Professional deep well drilling solution: The rig can drill up to 260 meters, powered by a pneumatic drive system for strong performance.
Well-suited for hydrogeological exploration and water well drilling, boasting great adaptability to complex geological conditions.
Backed by ISO certification and a 12-month warranty, it offers peace of mind for every drilling project.

Product Specifications

Parameter	Technical Data
Model Number	Wheels-mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO, CE
Hole Diameter	Customized (90-300mm)
Drilling Depths	260 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m
Air Consumption	16-30 M3/min, 20-100m3/min
Power Source	Diesel Engine (150HP)
Drilling Speed	0-120 rpm
Travel Speed	5-10 km/h

Technical Details

Equipped with diesel power, this rig features dimensions of 6400MM*2250MM*2700MM and a weight of 5800KG.
Offers a rotary speed range of 0-90rpm, travelling speed of 0-2.5km/h.
Compatible with 76*2m + 76*3m drilling rods for versatile operations.

Equipment Components

Pneumatic System: Provides power to drive the rotation and impact of the drill bit
Drill Rod System: Multiple sections of drill rods for gradual penetration
Drill Bit: Various types available based on geological conditions
Control System: Adjusts drilling parameters like rotation speed and impact force
Debris Removal System: Uses compressed air or mud to keep borehole clean

Safety Precautions
