105-305mm Diameter Multi-Method Drilling Rig For Loose Layer & Bedrock

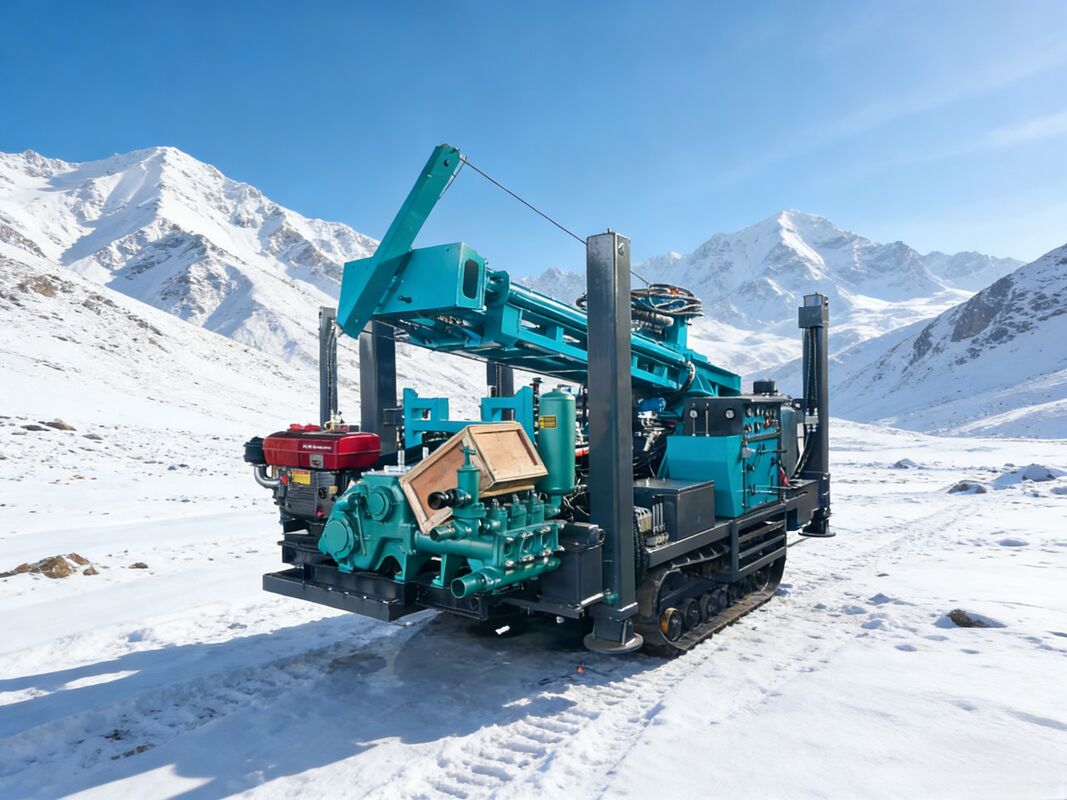

Large Image : 105-305mm Diameter Multi-Method Drilling Rig For Loose Layer & Bedrock

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST200s

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	7-15 workday
Payment Terms:	T/T,Western Union
Supply Ability:	500set

Contact Now

Detailed Product Description

Type:	Rotary Drilling Rig	Warranty:	1 Year
Key Selling Points:	High Working Efficiency	Video Outgoing-inspection:	Provided
Drilling Diameter:	105-300mm	Rotary Speed:	30/120r/min
Transportation Method:	Sea Freight	Max Drilling Depth:	0-260m
Rod Diamete:	76/89mm	Power:	65kw
Climbing Degree:	30	High Leg Travel:	1.35m
Highlight:	105-305mm pneumatic drilling rig , multi-method drilling rig for loose layer , bedrock drilling rig with warranty

105-305mm Diameter Multi-Method Drilling Rig for Loose Layer & Bedrock

A versatile drilling rig engineered for challenging environments including mountainous terrain, plains, and jungle conditions. With a maximum turning torque of 6900N·m and lifting force of 18T, this rig delivers exceptional drilling power. The compact 6T machine features a streamlined design for easy cross-border transportation and efficient operation in confined construction sites. The integrated 1.2T auxiliary winch enhances operational efficiency while economical gas consumption significantly reduces construction costs.

Technical Specifications

Engine Power	73KW
Dimensions	4.5m × 1.8m × 2.1m
Fast Forward Speed	40m/min
Adaptive Conditions	Loose layer and bedrock
Drill Pipe Diameter	76mm
Lifting Force	18T
Work Efficiency	10-35m/h
Quality Assurance	Video outgoing-inspection provided

Key Operational Benefits

Total machine weight of 6T enables convenient transportation and cross-border logistics throughout Southeast Asia
Compact 4m × 1.8m × 2.3m dimensions ideal for confined construction sites
Fast forward speed of 40m/min ensures efficient operational rhythm
Economical gas consumption of 15-55m³/min reduces energy costs
35m leg travel provides strong site adaptability and stable performance in complex Southeast Asian terrain
