Powerful Deep Rock Water Well Drilling Rig Wheels Mounted 100-200 Meters

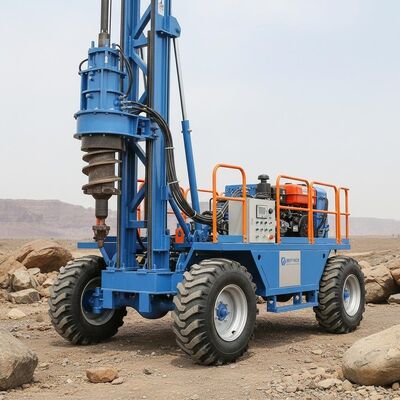

Large Image : Powerful Deep Rock Water Well Drilling Rig Wheels Mounted 100-200 Meters

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO/CE/COC
Model Number:	ST-180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Deep Water Well Drilling Machines For Farming Irrigation Boreholes	Model Number:	ST 200
Machine Type:	Water Borewell Drilling Rig	Certification:	ISO/CE/COC
Hole Diameter:	100-300 Mm	Drilling Depths:	200 Meters
Drilling Rod:	89/76mm	Diesel Engine:	Yuchai Brand
Warranty:	12 Months	Mud Pump:	BW 200,
After Sale Service:	Video Support	Color:	Optional
Highlight:	powerful borewell drilling machine , large torque pneumatic drilling rig , mounted borewell drilling rig wheels

Powerful Deep Rock Water Well Drilling Rig Wheels Mounted 100-200 Meters

Professional Wheel-Mounted Borewell Drilling Rig | 200m Deep

Engineered for high-torque, heavy-duty performance in hard rock, clay, and heterogeneous formations, our wheel-mounted borewell rig is built to outlast and outperform standard equipment. The integrated pneumatic-diesel power system delivers stable impact and rotation, minimizing downtime in remote off-grid sites where reliability is essential.

Technical Specifications

Attribute	Specification	Remarks
Machine Type	Wheel-Mounted Pneumatic Water Borehole Drilling Rig	Professional-grade, wheel-mounted for easy mobility
Drilling Depth	Max 200 Meters	Suitable for deep aquifers, irrigation & water supply projects
Hole Diameter	Customized (90-300mm)	Adapts to different well construction requirements
Drive System	High-performance Pneumatic Drive	Stable operation in complex geological formations
Rotation Torque	7500Nm / 4200Nm / 983Nm (Multi-specification Optional)	Large torque to handle hard rock formations efficiently
Air Consumption	16-30 M³/min / 20-100m³/min (Dual-specification Optional)	Flexible matching with different air compressor models
Power Source	Diesel	Suitable for off-grid and remote construction sites
Rotary Speed	0-90rpm (Adjustable)	Precise control for drilling in different geological layers
Machine Dimensions	4000MM * 2250MM * 2700MM	Compact design for convenient transportation
Machine Weight	5800KG	Stable operation, no extra haulage equipment required
Travelling Speed	0-2.5km/h	Wheel-mounted design for easy site-to-site transfer
Drill Rods	762m + 763m (Modular)	Gradual penetration, easy to assemble and disassemble
Certification	ISO/CE Certified	Complies with international quality and safety standards
Warranty	12 Months	Reliable after-sales guarantee for worry-free use
After-Sales Service	Online Video Support	Global troubleshooting and timely technical guidance
Application	Farming Irrigation, Rural Water Supply, Hydrogeological Exploration	Ideal for various complex geological working conditions

Key Features & Applications

Complete wheel-mounted drilling system with pneumatic drive
Modular drill rods (76*2m + 76*3m) for gradual penetration
Multi-geology drill bits for various soil conditions
Precision control panel for optimal operation
Integrated debris removal system
Ready for deployment upon arrival with professional technical guidance
Ideal for farming irrigation boreholes and rural water well construction
Perfect for hydrogeological exploration and small-to-medium mining prospecting
Excellent performance in regions with variable terrain and limited infrastructure

Packing & Shipping

Product shipped within 3-7 business days after order confirmation
Shipping cost calculated based on delivery address
Delivery time varies depending on destination
Tracking information provided once product is shipped

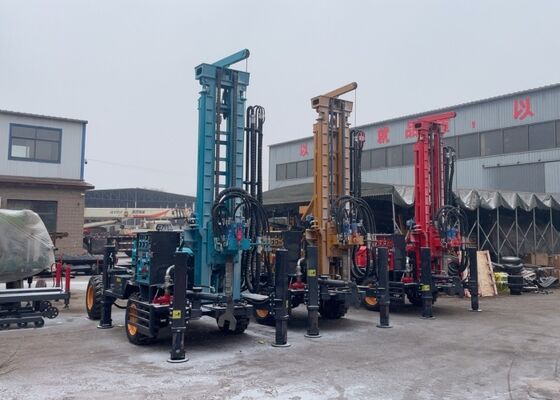

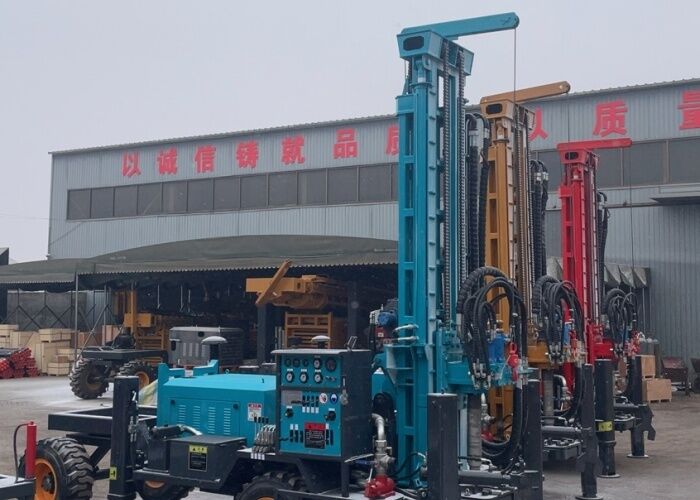

Product Gallery

This is not just a drilling machine—it's a long-term asset for contractors, agricultural cooperatives, and water authorities aiming to reduce operational costs, accelerate project timelines, and deliver consistent results in the world's most demanding drilling environments.
