150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole

Large Image : 150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO/CE/COC
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Deep Water Well Drilling Machines	Model Number:	ST 200
Drilling Depths:	200 Meters	Machine Type:	Water Borewell Drilling Rig
Mud Pump:	BW 250	Air Compressor:	23/29
Hole Diameter:	100-300 Mm	Drilling Rod:	89/76mm
Diesel Engine:	Yuchai Brand,Xidong Brand,Yunnei	Warranty:	12 Months
After Sale Service:	Video Support	Color:	Yellow,Red And Blue
Highlight:	DTH hard rock drilling rig 180 meters , deep well drilling rig 300mm borehole , pneumatic drilling rig for hard rock

150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole

DTH Hard Rock Layer Ground Drilling Equipment

This 180m water well drilling rig stands out from ordinary models by perfectly balancing high efficiency and long-lasting durability. It outperforms shallow rigs significantly while saving more energy than 200m over-depth units. Featuring a powerful pneumatic-diesel system for hard rock drilling and wheel-mounted mobility for easy deployment in remote off-grid areas.

Main Specifications

Attribute	Specification	Remarks
Machine Type	Wheel-Mounted Pneumatic Water Borehole Drilling Rig	Professional-grade, wheel-mounted for easy mobility
Drilling Depth	Max 200 Meters	Suitable for deep aquifers, irrigation & water supply projects
Hole Diameter	Customized (90-300mm)	Adapts to different well construction requirements
Drive System	High-performance Pneumatic Drive	Stable operation in complex geological formations
Rotation Torque	7500Nm / 4200Nm / 983Nm (Multi-specification Optional)	Large torque to handle hard rock formations efficiently
Air Consumption	16-30 M³/min / 20-100m³/min (Dual-specification Optional)	Flexible matching with different air compressor models
Power Source	Diesel	Suitable for off-grid and remote construction sites
Rotary Speed	0-90rpm (Adjustable)	Precise control for drilling in different geological layers

Key Features

Ideal for irrigation, rural water wells, hydrogeological exploration and small mining operations
Excellent performance in areas with variable terrain and limited infrastructure
Complete wheel-mounted pneumatic system for immediate deployment
Professional guidance and support included

Packing & Shipping

Product shipped within 3-7 business days after order confirmation
Shipping cost calculated based on delivery address
Delivery time varies depending on destination
Tracking information provided once product is shipped

This is not just a drilling machine—it's a long-term asset for contractors, agricultural cooperatives, and water authorities aiming to reduce operational costs, accelerate project timelines, and deliver consistent results in the world's most demanding drilling environments.

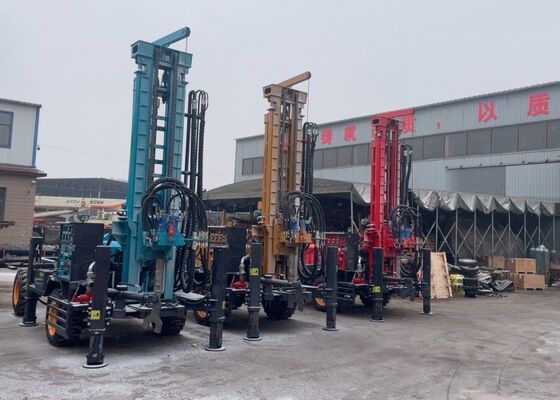

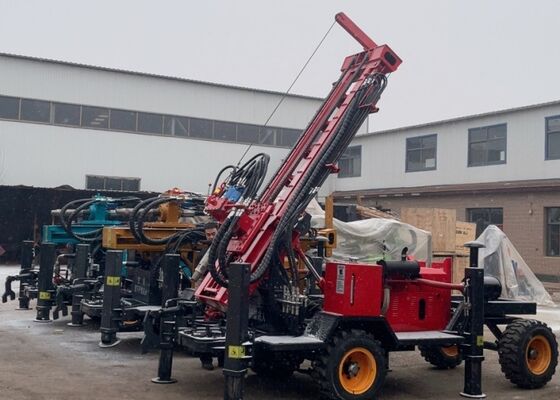

Product Images
