Water Borehole Underground Rock Drilling Machine 200 Meters Depth Industrail Application

Large Image : Water Borehole Underground Rock Drilling Machine 200 Meters Depth Industrail Application

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO/CE/COC
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Deep Water Well Drilling Machines	Model Number:	ST 200
Drilling Depths:	200 Meters	Machine Type:	Water Borewell Drilling Rig
Mud Pump:	BW 250	Air Compressor:	23/29
Hole Diameter:	100-300 Mm	Drilling Rod:	89/76mm
Diesel Engine:	Yuchai Brand,Xidong Brand,Yunnei	Warranty:	12 Months
After Sale Service:	Video Support	Color:	Yellow,Red And Blue
Highlight:	150 meters depth drilling rig , large diesel power borehole drill , pneumatic water drilling equipment

Water Borehole Underground Rock Drilling Machine

200 Meters Depth Industrial Application

This professional ground drilling equipment features large diesel power for water borehole applications and DTH hard rock layer drilling capabilities. The 180m water well drilling rig stands out from ordinary models by perfectly balancing high efficiency and long-lasting durability.

Technical Specifications

Attribute	Specification	Remarks
Machine Type	Wheel-Mounted Pneumatic Water Borehole Drilling Rig	Professional-grade, wheel-mounted for easy mobility
Drilling Depth	Max 200 Meters	Suitable for deep aquifers, irrigation & water supply projects
Hole Diameter	Customized (90-300mm)	Adapts to different well construction requirements
Drive System	High-performance Pneumatic Drive	Stable operation in complex geological formations
Rotation Torque	7500Nm / 4200Nm / 983Nm (Multi-specification Optional)	Large torque to handle hard rock formations efficiently
Air Consumption	16-30 M³/min / 20-100m³/min (Dual-specification Optional)	Flexible matching with different air compressor models
Power Source	Diesel	Suitable for off-grid and remote construction sites
Rotary Speed	0-90rpm (Adjustable)	Precise control for drilling in different geological layers

Key Features & Applications

Ideal for irrigation, rural water wells, hydrogeological exploration and small mining
Perfect for areas with variable terrain and limited infrastructure
Complete wheel-mounted pneumatic system for immediate deployment
Outperforms shallow rigs while saving more energy than 200m over-depth units
Powerful pneumatic-diesel system for hard rock drilling
Wheel-mounted mobility for easy use in remote off-grid areas

Packing & Shipping

Product will be shipped within 3-7 business days after order confirmation
Shipping cost will be calculated based on the delivery address
Delivery time may vary depending on the destination
Tracking information will be provided once the product is shipped

This is not just a drilling machine—it's a long-term asset for contractors, agricultural cooperatives, and water authorities aiming to reduce operational costs, accelerate project timelines, and deliver consistent results in the world's most demanding drilling environments.

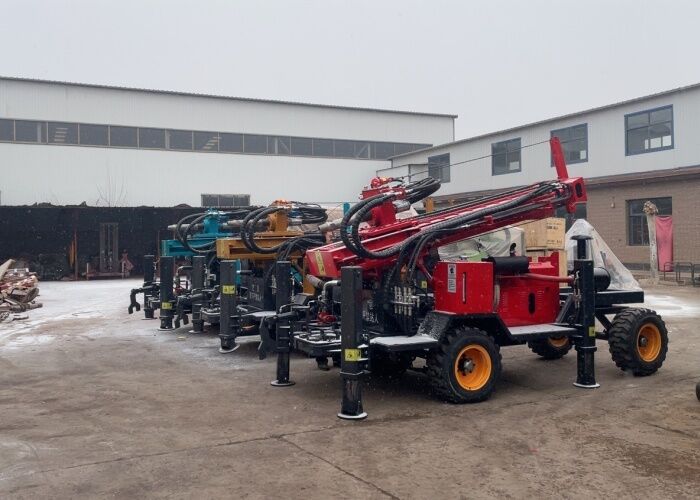

Product Images
