Blasting DTH Ground Water Drilling Machine 160 Meters Depth For Farming

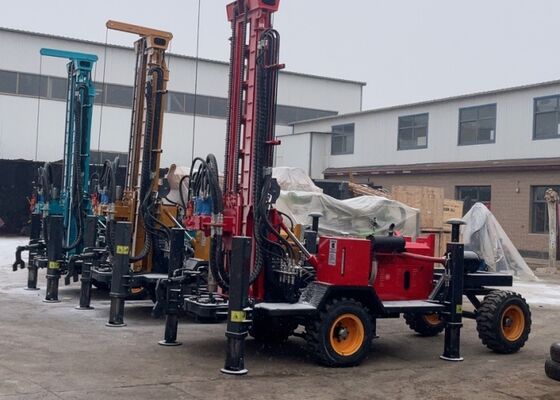

Large Image : Blasting DTH Ground Water Drilling Machine 160 Meters Depth For Farming

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO/CE/COC
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Deep Water Well Drilling Machines	Model Number:	ST 200
Drilling Depths:	200 Meters	Machine Type:	Water Borewell Drilling Rig
Mud Pump:	BW 250	Air Compressor:	23/29
Hole Diameter:	100-300 Mm	Drilling Rod:	89/76mm
Diesel Engine:	Yuchai Brand,Xidong Brand,Yunnei	Warranty:	12 Months
After Sale Service:	Video Support	Color:	Yellow,Red And Blue
Highlight:	DTH ground water drilling machine , 160 meters depth drilling rig , pneumatic drilling rig for farming

Blasting DTH Ground Water Drilling Machine - 160 Meters Depth For Farming

Professional water borehole underground rock drilling machine designed for industrial applications up to 160 meters depth. This heavy-duty equipment combines large diesel power with DTH hard rock layer drilling capabilities for superior performance in demanding conditions.

Technical Specifications

Attribute	Specification	Remarks
Machine Type	Wheel-Mounted Pneumatic Water Borehole Drilling Rig	Professional-grade, wheel-mounted for easy mobility
Drilling Depth	Max 200 Meters	Suitable for deep aquifers, irrigation & water supply projects
Hole Diameter	Customized (90-300mm)	Adapts to different well construction requirements
Drive System	High-performance Pneumatic Drive	Stable operation in complex geological formations
Rotation Torque	7500Nm / 4200Nm / 983Nm (Multi-specification Optional)	Large torque to handle hard rock formations efficiently
Air Consumption	16-30 M³/min / 20-100m³/min (Dual-specification Optional)	Flexible matching with different air compressor models
Power Source	Diesel	Suitable for off-grid and remote construction sites
Rotary Speed	0-90rpm (Adjustable)	Precise control for drilling in different geological layers

Key Features & Applications

Ideal for irrigation, rural water wells, hydrogeological exploration and small mining
Perfect for areas with variable terrain and limited infrastructure
Complete wheel-mounted pneumatic system for immediate deployment
Outperforms shallow rigs while saving more energy than 200m over-depth units
Powerful pneumatic-diesel system for hard rock drilling
Wheel-mounted mobility for easy use in remote off-grid areas

Packing & Shipping

Product will be shipped within 3-7 business days after order confirmation. Shipping cost will be calculated based on the delivery address. Delivery time may vary depending on the destination. Tracking information will be provided once the product is shipped.

This is not just a drilling machine—it's a long-term asset for contractors, agricultural cooperatives, and water authorities aiming to reduce operational costs, accelerate project timelines, and deliver consistent results in the world's most demanding drilling environments.

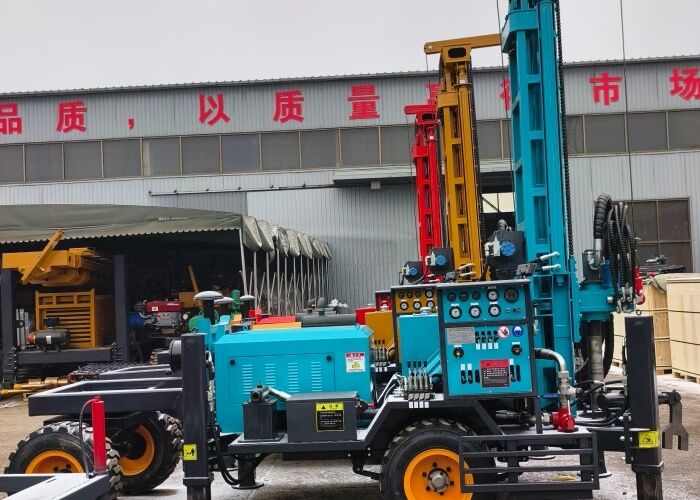

Product Images
