CE BW250 Triplex Drilling Mud Pump , Portable Mud Pump Superior Equipment

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

CE BW250 Triplex Drilling Mud Pump , Portable Mud Pump Superior Equipment

China CE BW250 Triplex Drilling Mud Pump , Portable Mud Pump Superior Equipment supplier

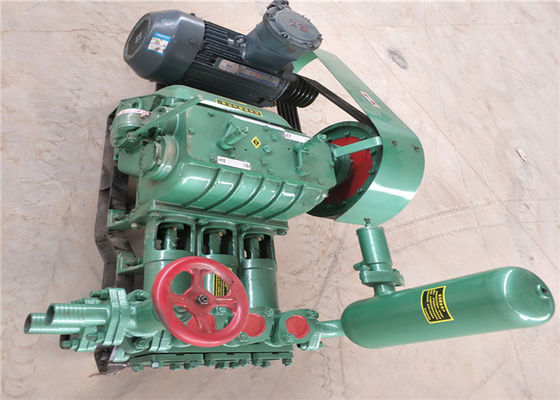

Large Image :  CE BW250 Triplex Drilling Mud Pump , Portable Mud Pump Superior Equipment

Product Details:

Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: BW250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Place Of Origin: Beijing, China (Mainland) Model Number: BW250
Structure: Piston Pump Power: Mechnical, Diesel/Electric/Hydraulic
Fuel: Diesel Pressure: High Pressure, 70bar
Product Name: Mud Pump Input Speed: 500R/min
Most Flow Rate: 250 L/min Suction Hose Diameter: 76mm
Suction Height: 2.5m Weight: 520Kgs
Dimensions: 1000*995*650



Large Type BW 250 Drilling Mud Pump for Irrigation



1.BW grotuting pump is widely used for grouting and mud jacking in enguneering conatruction.

2.BW mud pump have four gear shifts.Output and drilling depth are adjustablr,so it can be used to grout cement slurry or equuipped with drilling machine.

3.BW grouting pump is widely used in railway,hydraulic engineering,matallurgical engineering,building construction,geological exploration,engineering exploration.



Mud pump is a horizontal three-cylinder reciprocating single-acting piston pump

It is mainly used for core drilling rig supporting transportation slurry,also can be used for other aspects of grouting,mine drainage and long-distance water supply and other uses.The pump has low energy consumption,flexible operation,high quality and durability,good decomposability ad easy relocation.Drilling cycle water power source.

Working

BW mud pump is horizontal triplex grout pump with high stability and high pressure.

Eight gear shift to adjust the flow,large output capacity,simple operation.

High quality pump parts,less wearing parts,long service life,low construction cost.

Fast suction-discharge speed,high pump efficiency.

Less noise and dust,environmental operation.

BW Mud pump
Model BW150 BW160 BW250 BW320
Max. Flow rate 150L/Min 160L/Min 250L/Min 320L/Min
Max. pressure 7Mpa 10Mpa 6Mpa 8Mpa
power 7.5KW 11KW 15KW 30KW
inlet pipe diameter 51mm 51mm 76mm 76mm
outlet pipe diameter 32mm 32mm 51mm 51mm
Weight 480kg 560kg 760kg 1000kg





Product Parameter:





Type Horizontal, triplex, reciprocating, single acting piston pump
Stroke 100mm
Bore 80mm 65mm
Pump speed (s.p.m) 200 116 72 42 200 116 72 42
Output volume (l.p.m) 250 145 90 52 116 96 60 35
Discharge pressure (Mpa) 2.5 4.5 6.0 6.0 4.0 6.0 7.0 7.0
Volumetric efficiency 85%
Mechanical efficiency 85%
Total efficiency 70%
Input power/speed (kw/r.p.m) 15/1500
Multiple grooved pulley D.P (mm) 410(B groove*5)
Input speed of pump (r.p.m) 500
Max. suction head (m) 2.5
Inside diameter of suction hose (mm) 76
Inside diameter of discharge (mm) 51
Overall dimensions (mm) 1100*995*650
Weight (kg) 500(without power)
