Product Details:
Payment & Shipping Terms:
|
| Model Number: | XY-2 | Type: | Core Drill Rig |
|---|---|---|---|
| Power Type: | Diesel | Usage: | Coal, Oil |
| Voltage: | 380V | Power(W): | 15KW |
| Dimension(L*W*H): | 2220x900x1880mm | Drilling Depth: | Max.100~530m |
| Angle Range: | 0°~90° | Hole Diameter: | 500m |
| High Light: | 500m Depth Core Drill Rig,500m Hydraulic Core Drill Rig,15KW Core Drill Rig |
||

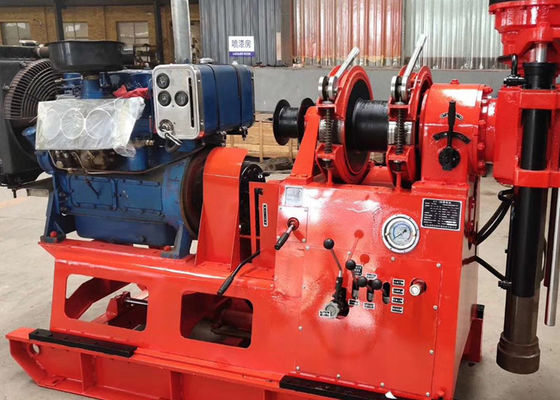

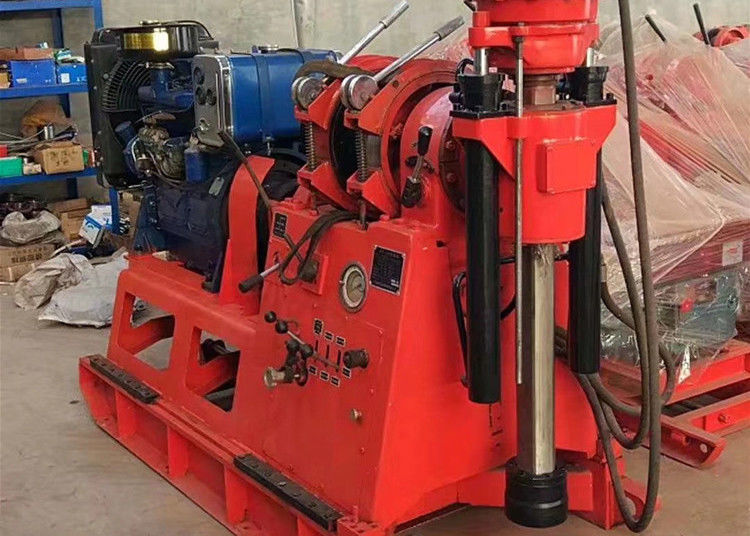

XY-2B Portable Hydraulic Core Drilling Rig / Drilling Machine 500m Depth For Mine Equipment
Core Drilling Rig brief introduction
XY-2B Drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration,kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc
Core Drilling Rig Product parameters
| XY-2 BType | |||
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.100~530m |
Spindle speed
|
57 99 157 217 270 470 742 1024 r/min |
|
Hole diameter
|
Max.600m | Spindle stroke | 560mm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.50KN |
| Angle range | 0°~90° | Spindle lifting capacity | Max. 60KN |
| Oil pump | Water pump | ||
| Model | YBC-20/125 | Model | Gear oil pump |
| Rated pressure | 8Mpa | Working pressure | Max. 10Mpa |
| Flow speed | 20ml/r | ||
| Rated speed | 150r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 212kgs | Model(diesel engine | 395K2 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 19.85KW |
| Drum diameter | 140mm | Rated speed | 2200 r/min |
| WEIGHT | AROUND 1200kgs | ||
| SIZE | 2220x900x1880mm | ||
Core Drilling Rig Advantages
1. Propulsion, rotary and impact all powered by compressed air, the structure is simple, a single, convenient to move.
2.Have single, double top, bearing type selection of three kinds of supporting structure, can adapt to any geological .
3.Operator focus, convenient and quick operation.
4.Unique dual mufflers, good silencing effect, reduce the pollution of the environment.
5.Drilling rig is suitable for harsh work environment and place that traffic is not convenient.
