50 Series Exploration Drilling Equipment Small Geological Vertical Sampling

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

50 Series Exploration Drilling Equipment Small Geological Vertical Sampling

50 Series Exploration Drilling Equipment Small Geological Vertical Sampling
50 Series Exploration Drilling Equipment Small Geological Vertical Sampling 50 Series Exploration Drilling Equipment Small Geological Vertical Sampling

Large Image :  50 Series Exploration Drilling Equipment Small Geological Vertical Sampling

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: 50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 50m Dimension(L*W*H): 1180×680×1600mm
Drill Pipe Diameter: 42mm Condition: New
Weight: 200KG Hole Size Diameter: 73-108mm
High Light:

50m exploration drilling equipment

,

diesel core exploration drilling equipment

,

50m soil sample drilling machine

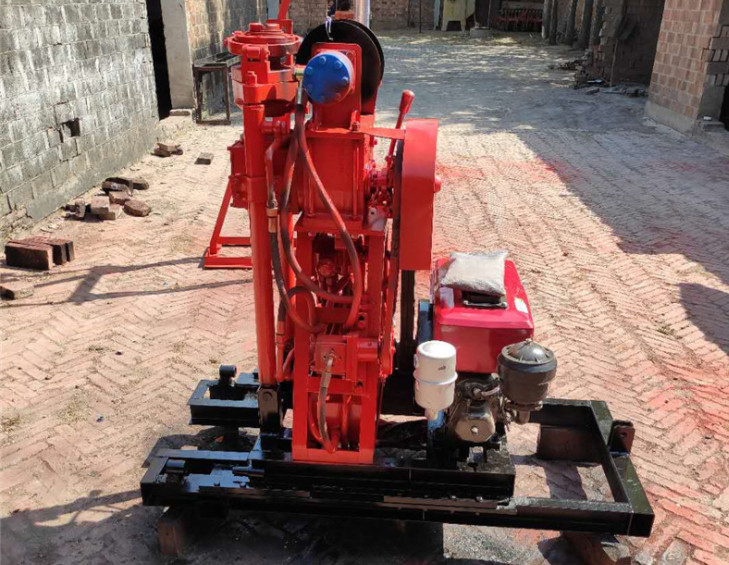

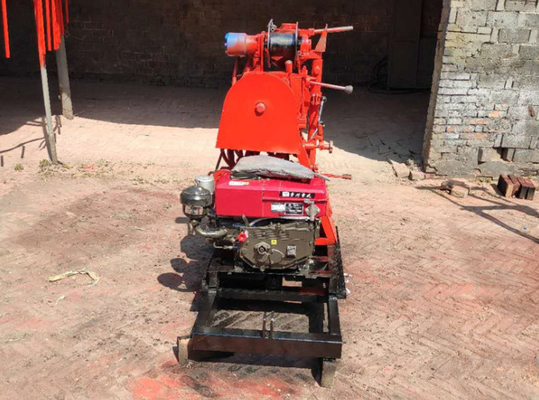

50 Series Small Geological Exploration Drilling Rig Vertical Exploration Sampling Drilling Rig


Soil Test Drilling Machine Product introduction

Model 50 drilling rig is a high, medium and low speed drilling rig with oil pressure feed. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed and large diameter of core samples. It is a commonly used portable hydraulic drill at present.

​Soil Test Drilling Machine parameters:



Type ST50 drilling rig
Drilling depth (m) The max. 50 meter
Hole size diameter 73-108mm
Drill pipe diameter 42mm
Vertical spindle speed 70-650
Reverse rotation speed 50-130
Power 5.7KW
Outsize 1180×680×1600mm

Weight

(including Gasoline engine )

208kg



Soil Test Drilling Machine Product use


It is especially suitable for coring operations in special difficult terrain such as mountains, hills and rivers, and for engineering geological survey of buildings such as railways, hydropower, transportation, bridges and dam foundations; Geological core drilling and physical survey; Drilling of small grouting holes and blasting holes; Small well drilling.



Soil Test Drilling Machine characteristic


1. Small and light, convenient for high altitude geological operations;
2. The hydraulic automatic feeding mechanism is adopted to improve the drilling efficiency and reduce the labor intensity of workers.
3. The vertical shaft box 4 sets ensure that the gyrator has sufficient rigidity to deal with complicated terrain conditions such as gravel layer and pebble layer;
4. It adopts national patent taper clutch, which has large transmission torque, convenient operation and maintenance-free.



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory, so we can keep the best price and good quality and good service for you.

Q: How long is your delivery time?

A: Generally it is 5-7 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it according to quantity.


Q: What is the after sale service type


A: Gurantee the machine quality for 1year. ( except the spare parts) , techncial training can by supplied also.
