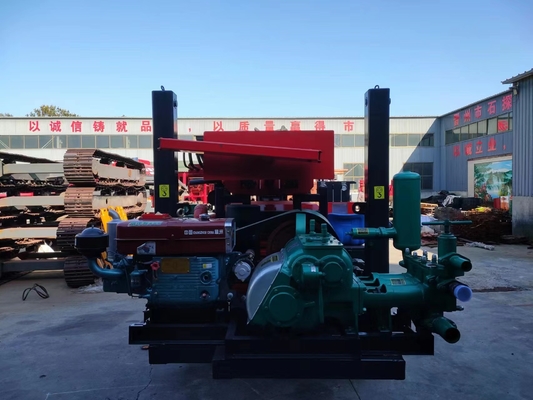

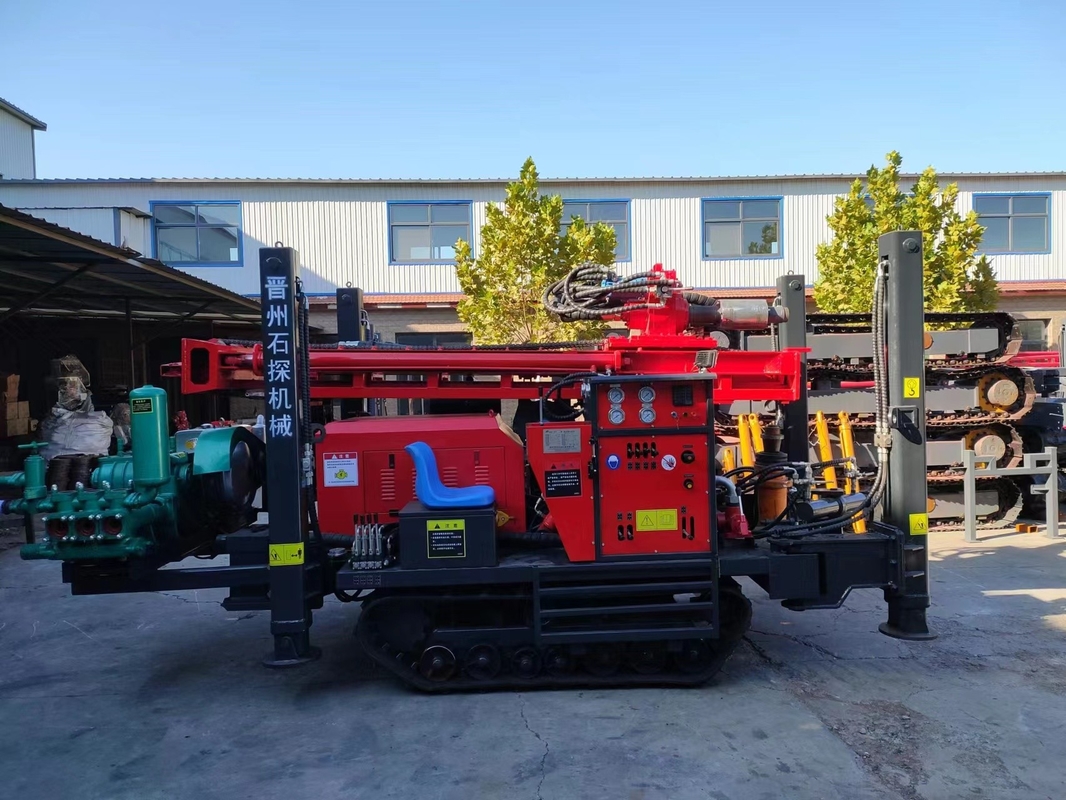

Dth 180m Crawler Drill Machine Diesel Engine

Crawler Mounted DTH Drilling Rig 180m Diesel Engine Water Well Drilling Rig

ST 180 Crawler Mounted Drilling Rig Introduction

180 water well drilling rig is a type of light weight, high efficient, multiple functional drilling hole equipment. Which is equipped with advanced structure, easy to handle,high efficient, durable using etc , widely used for drilling well, farming irrigation well,geothermal air conditionhole and other usage well hole, especially suitable for water intaking in moutainnous area and rock layer. The drill adopts newest hydraulic technology, mating with big torque hydraulic motor rotation and large bore hydraulic oil cylinder driven, lower the labor, cut down assist time, improve efficiency of construction and project quality.


ST 180 Crawler Mounted Drilling Rig Tech Information

ST 180 Crawler Mounted Drilling Rig Features

1, The engine using qianchai 55Kw turbocharged diesel engine;
2 Walking devices: walking motor with gear box, long working life;
3, The hydraulic pump: parallel gearbox design (patent) separate pump, the power to provide adequate distribution, unique hydraulic system design, maintenance is simple with lower costs;
4, The power head device: gearbox casting, double motor to provide power, large torque, durability, maintenance cost is lower;
5, Rig chassis: professional digging machine rubber chassis, durable, large bearing capacity, wide chain plate, which has no damage to the hard road;
6, The lifting force: patented design compound arm, arm in small size, long stroke, double cylinder upgrade, lifting with large tonnage;
7, Lifting arms of each rig are installed limiter to protect the cylinder safety cylinder and to protect the security of the work process;
8, Each of the hydraulic oil tube are wrapped with protective jacket, which make the oil tubes have a longer service time.

Five main precautions for maintenance of crawler drilling rig

First of all, in addition to the routine maintenance during construction, the crawler drilling rig must also carry out regular maintenance on important parts as required. The following five points should be noted:
1. Before each operation, the elevator shall be filled with lubricating grease. When filling the elevator, the grease nipple at the other end must be opened, which is conducive to extruding the previously filled grease. Otherwise, the oil seal in the elevator may be damaged.
2. Check whether the oil quantity in each oil tank is sufficient and the oil quality is normal, and check whether the oil quantity in each reducer gear is sufficient and the oil quality is normal; Check for oil leakage.
3. Check whether the wire rope is broken and whether its connection is intact and safe.
4. Check whether the elevator can rotate flexibly and whether the internal grease is polluted.
5. Check the steel structure for cracks, rust, desoldering and other damages.
Do you remember the above 5 points?
Once we find any fault in the use process, we should deal with it in time to eliminate all potential safety hazards and ensure that the crawler drilling rig is always in the best working condition.
