Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pneumatic Drilling Rig ST 260 | Drilling Diameter: | 105-260mm |
|---|---|---|---|
| After-sales Service Provided: | Water Well Drilling Rig | Warranty: | 1 Year |
| Power Type: | Diesel | Color: | Yellow |
| Weight: | 6T | Rotary Head Storke: | 3.4m-6.0m |
| Rated Power: | 55-132KW | Weight Of The Rig: | 4m×1.7m×2.2m |
| High Light: | 260m deep crawler drill rig,105mm diameter crawler drill rig,crawler mounted borehole drilling rig |
||

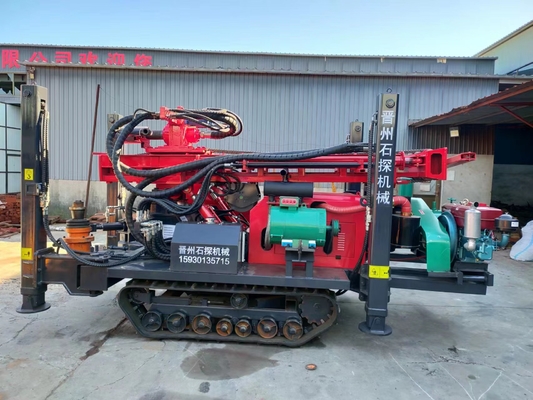

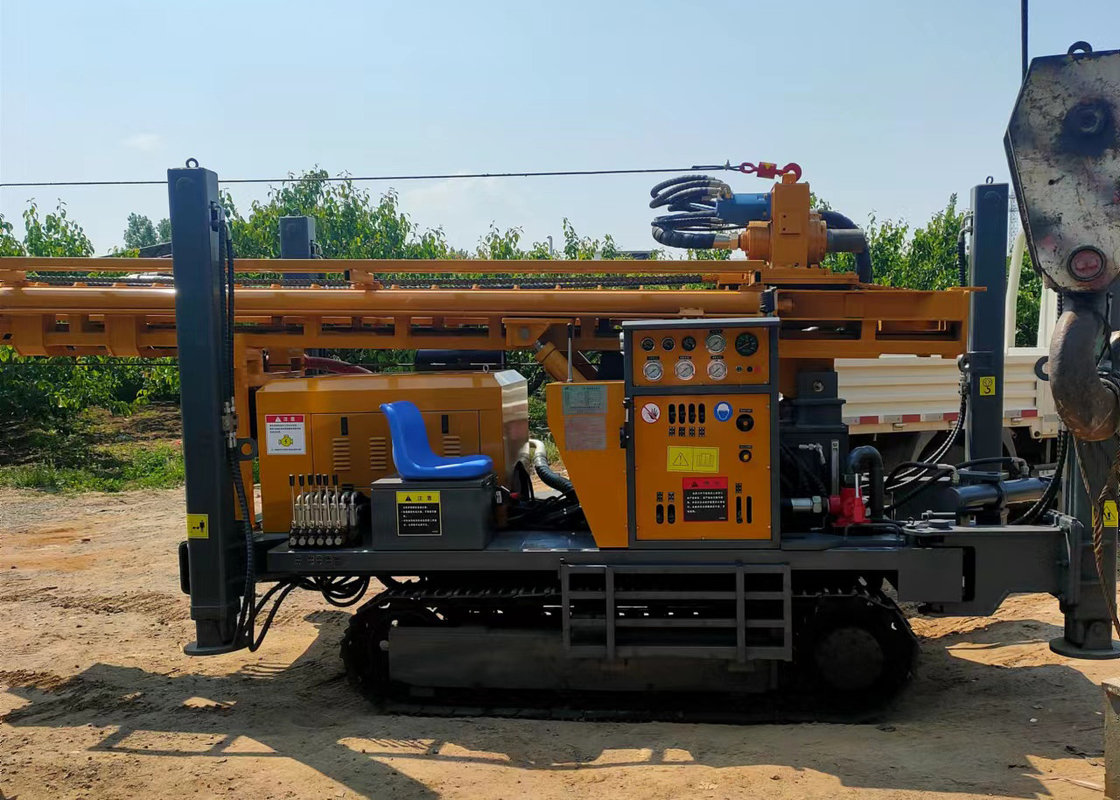

260m Crawler Mounted Deep Borehole Water Well Drilling Rig Machine For Sale
ST 260 Pneumatic Drilling Rig Description
ST 260 Pneumatic Drilling Rig Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
ST 260 Pneumatic Drilling Rig Tech Details
| Hole Diameter | φ105-260mm |
| Drilling Depth | 260 meters |
| Working pressure | 1.7-3.0MPa |
| Air consumption | 17-35m³/min |
| Length of rod | 1.5m,2m,3m,6m |
| Dia. Of rod | φ76, φ89,φ102,φ114 |
| Lifting power | 24T |
| Rotation torque | 8500-11000N.m |
| Rotation Speed | 40-70r/min |
| Diesel Engine | Yuchai |
| Engine Power | 85Kw/2200rpm |
| Travelling speed | 0-2.5 Km/h |
| Climb capacity | 30° |
| Weight | 9000kgs |
| Dimension | 5900x2000x2850mm |
| Application | Complicated geological conditions:Rock,Mud,Sand etc. |
| Drilling Way | Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling |
| Dth Hammer | 4",5",6",8" Drill hammer or CIR110, 130, 150,170 |
ST 260 Pneumatic Drilling Rig Features
8. Each hydraulic tubing is covered with a protective sleeve, so that the tubing life longer..
rods are all controlled by hydraulic pressure.
Precautions during operation of water well drilling rig:
1. Before drilling, the drilling rig shall be constructed in strict accordance with the hole location, orientation, angle and depth
2. Ensure that the drill pipe is not blocked, bent or cracked when installing it.
3. When clean water drilling is adopted, water supply is not allowed before spudding, and pressure drilling can only be carried out after the water returns. Sufficient flow shall be ensured, and dry drilling is not allowed. When there is much rock powder in the hole, water shall be increased to extend the pumping time, and drilling can only be stopped after the hole is effectively flushed.
4. During drilling, the distance shall be measured accurately. Generally, the drill pipe must be measured every 10m of drilling or when the drilling tool is changed, and the hole depth shall be verified and relevant records shall be made. 5. Check the gearbox, shaft sleeve, horizontal and vertical shaft gear, etc. for overheating and abnormal sound. If any problem is found, stop the machine immediately to find out the cause and deal with it in a timely manner. Don't leave the problem unsolved. As a result, mechanical damage is very fast and maintenance costs are high over the years.
