Product Details:
Payment & Shipping Terms:
|
| Model Number: | BW-160 | Product Name: | BW 160 High Precision Drilling Mud Pump |
|---|---|---|---|
| Structure: | Water Well Mud Pump | Usage: | Water |
| Fuel: | Diesel | Power: | Hydraulic |
| Feature: | Critical Cleaning / Residue Free | Pressure: | High Pressure |
| Application: | For Flushing Fluid | Place Of Origin: | Hebei,China |
| High Light: | Piston Grouting Mud Pumps,BW 160 Series Mud Pumps,High Precision Mud Pumps |
||

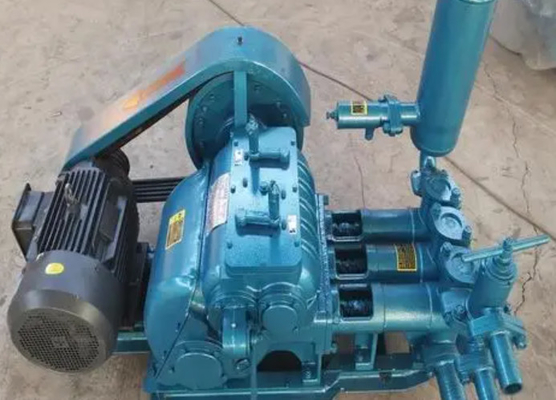

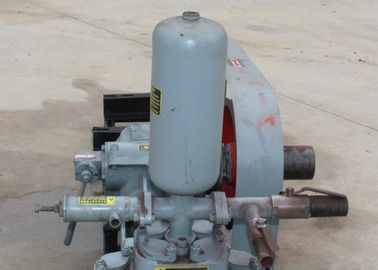

High Precision Piston Grouting BW 160 Series Mud Pumps For Drilling Works
BW 160 Mud Pump Product Description:
A mud pump (sometimes referred to as a mud drilling pump or drilling mud pump), is a reciprocating piston/plunger pump designed to circulate drilling fluid under high pressure (up to 7,500 psi (52,000 kPa)) down the drill string and back up the annulus. A mud pump is an important part of the equipment used for well drilling.Mud pumps can be divided into single-acting pump and double-acting pump according to the completion times of the suction and drainage acting in one cycle of the piston's reciprocating motion.
BW 160 Mud Pump Product Parameter:
| Type | Horizontal type single-cylinder Double-action pump |
| Cylinder Diameter | 95 mm |
| Stroke | 85 mm |
| Reciprocate Times | 165 times/ minute |
| Displacement | 160 L/min |
| Pressure | 1.3 MPa |
| Volume Effiency | 80% |
| Input Speed | 951 rotations/min |
| Transmisiion shaft speed | D180/Z5.88kw |
| Input pipe diameter | 50mm |
| Output pipe diameter | 40mm |
| Mass (including the engine) | 200 kg |
| Dimensions | 1110*725*965 mm |
BW 160 Mud Pump Product Main Features
BW160/10 grouting pump is a horizontal three cylinder reciprocating single acting piston pump. It has four kinds of flow rate and pressure and the range of flow and pressure are large. The pump has compact structure, light weight, long working life, easy operation. It’s flexible, reliable and has many common standard parts. It's portable thus easy to move. It can be used in railway,water, metallurgy, construction, geology and other industries with hole depth within 1000m.
BW Series Mud Pump Working Attentions
1. Before starting, the suction pipe, bottom valve and pump body should be filled with water, and the upper end of the pressure gauge buffer should be filled with oil.
2. Before starting, make the piston reciprocate twice, and start with no load when there is no obstruction. After starting, the load shall be increased gradually after the operation is normal.
3. During operation, the sand content of mud should be tested frequently. The sand content of mud shall not exceed 10%.
6. For mud pump with multiple speeds, several speeds shall be operated separately in each shift, and the operation time shall not be less than 30min
4. Do not change speed during operation; When it is necessary to change speed, stop the pump for shifting.
5. During operation, when there is abnormal noise, abnormal water volume and pressure, or obvious temperature rise, the pump shall be stopped for inspection.
6. Under normal conditions, the pump shall be stopped at no load. When the pump is stopped for a long time, all drain holes should be opened, the cylinder head should be loosened, the bottom valve drain rod should be lifted, and all the mud and sand in the pump body and pipeline should be drained.
7. In case of long-term shutdown, clean the mud and oil dirt of each part, drain the lubricating oil in the crankcase, and take anti-rust and anti-corrosion measures.
Mud Pump Installation Reference
1.all parts shall be inspected for defects. The paper shall be coated with a layer of grease, which is added to two thirds of the bearing grease and all the pads on both sides of the paper.
2. The hub ring type has built-in rear grease
3. The seal must be filled with grease in the mud block and then installed in the bearing.
4. As shown in the filter press pump, the bearing installed on the motor base, paper pad and oil baffle ring are installed on the shaft, and the supporting cylinder is screwed.
5. The paper pad is installed on the bearing. The bushing, key, pump housing and blade head can be flexibly tightened by rotating the blade nut by hand.
6. Install the paper pad installed on the pump housing on the screen with screws. Then pull out the hand blade to make it rotate flexibly.
