| Product Name: | BW 320 Triplex Portable Drilling Mud Pump For Water Well Drilling Works | Model: | BW 320 |
|---|---|---|---|
| Brand: | Shitan | Structure: | Piston Pump |
| Application: | Water Well Drilling ,exploration | Weight: | 300-500kg |
| Fuel: | Diesel | Material: | Stainless Steel |
| OEM: | Acceptable | Place Of Origin: | Hebei,China |
| After Sale Service: | Video Support | Warranty: | 12 Month |
| High Light: | Triplex Drilling Mud Pump,Portable Drilling Mud Pump,Diesel Triplex Mud Pump |
||
BW 320 Triplex Portable Drilling Mud Pump For Water Well Drilling Works
Horizontal Diesel Powered BW 320 Water Well Drilling Mud Pump For Energy And Mining
Product Description:
BW 320 slurry pump have two cylinders with different diameters and four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with 1500m drilling machine,it is diesel powered and mainly used for the flushing fluid drilling ,the flushing fluid can be mud or clear water.
Product Parameter:
|
Type |
Horizontal three cylinder reciprocating single acting piston pump |
|
Cylinder diameter(mm) |
80 |
|
Stroke |
110 |
|
Pump speed |
214 153 109 78 |
|
Flow(L/min) |
320 230 165 118 |
|
Pressure(MPa) |
2.2 3.6 6.2 10 |
|
Power(kw) |
45 |
|
shape size(mm) |
1905×1100×1200 |
|
Weight(kg) |
720 |
Product Advantages
1. BW mud pump is horizontal triplex grout pump with high stability and high pressure.
2. Eight gear shift to adjust the flow,large output capacity,simple operation.
3. High quality pump parts,less wearing parts,long service life,low construction cost.
4. Fast suction-discharge speed,high pump efficiency.
5. Less noise and dust,environmental operation.
Product Applications And Attentions During Working
It can be used for the transportation of high-viscosity fluids and the transportation of media containing hard suspended particles or fiber, and can be competent for the working conditions that other pump types cannot adapt to. Its flow is proportional to the speed. Its outstanding advantages are that it does not form eddy current when transporting medium, is insensitive to the viscosity of medium, and can transport high-viscosity medium
1. Before starting, the suction pipe, bottom valve and pump body should be filled with water, and the upper end of the pressure gauge buffer should be filled with oil.
2. Before starting, make the piston reciprocate twice, and start with no load when there is no obstruction. After starting, the load shall be increased gradually after the operation is normal.
3. During operation, the sand content of mud should be tested frequently. The sand content of mud shall not exceed 10%.
6. For mud pump with multiple speeds, several speeds shall be operated separately in each shift, and the operation time shall not be less than 30min
4. Do not change speed during operation; When it is necessary to change speed, stop the pump for shifting.
5. During operation, when there is abnormal noise, abnormal water volume and pressure, or obvious temperature rise, the pump shall be stopped for inspection.
6. Under normal conditions, the pump shall be stopped at no load. When the pump is stopped for a long time, all drain holes should be opened, the cylinder head should be loosened, the bottom valve drain rod should be lifted, and all the mud and sand in the pump body and pipeline should be drained.
7. In case of long-term shutdown, clean the mud and oil dirt of each part, drain the lubricating oil in the crankcase, and take anti-rust and anti-corrosion measures.
Applicable scope of mud pump
It can be used for the transportation of high-viscosity fluids and the transportation of media containing hard suspended particles or fiber, and can be competent for the working conditions that other pump types cannot adapt to. Its flow is proportional to the speed. Its outstanding advantages are that it does not form eddy current when transporting medium, is insensitive to the viscosity of medium, and can transport high-viscosity medium

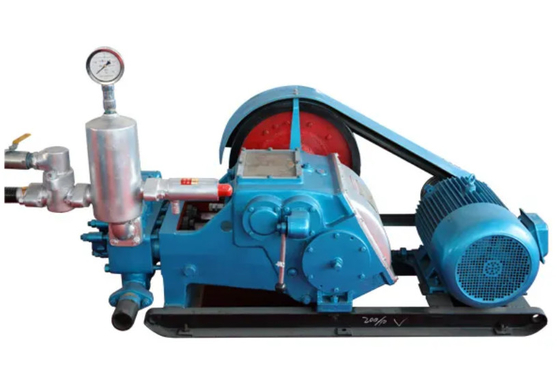

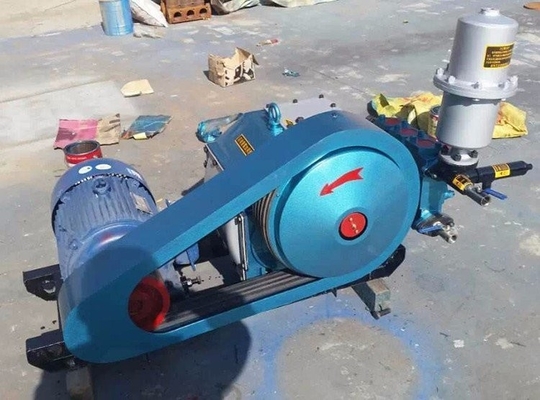

Product Image
