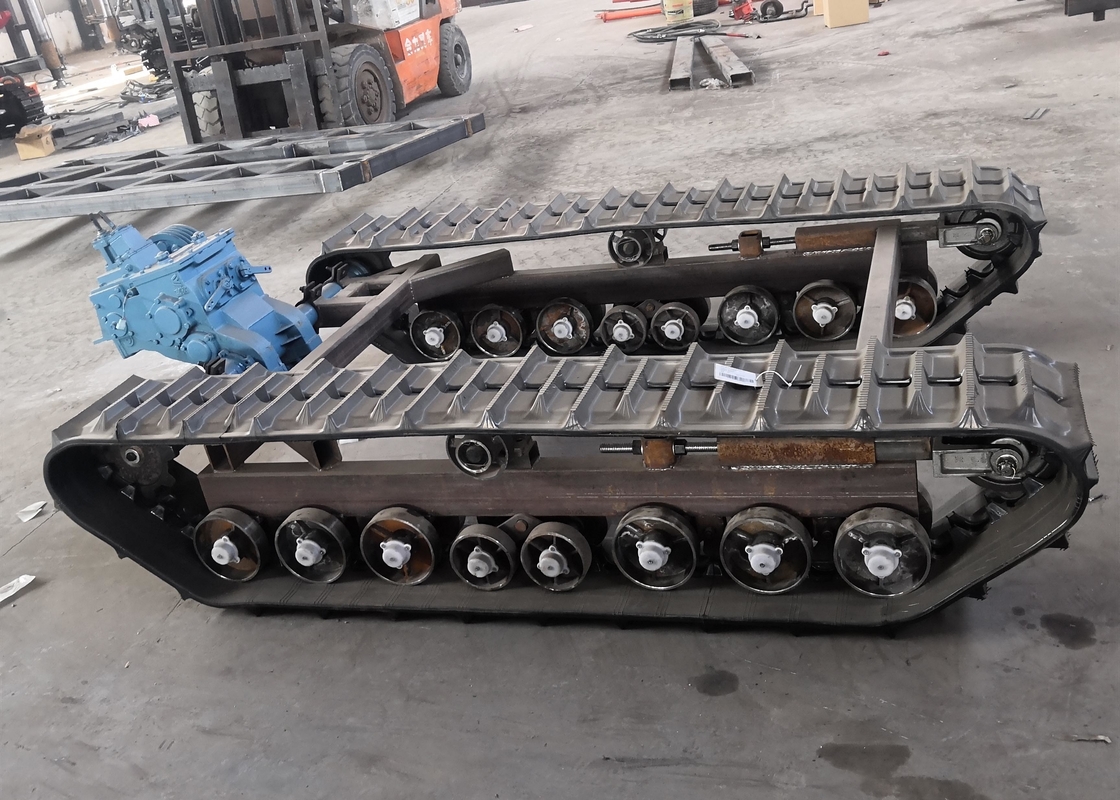

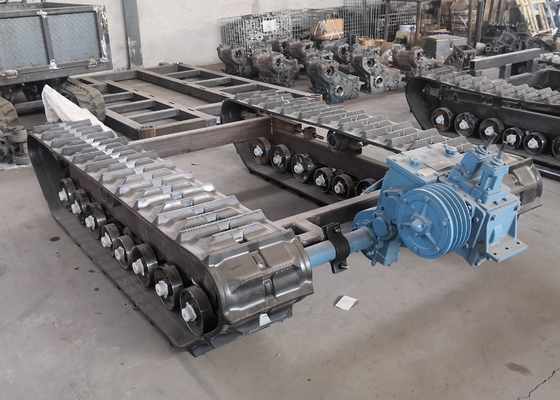

Customized Rubber Crawler Track Undercarriage For Borehole Drilling Rig Machines

Customized Design Rubber Crawler Track Undercarriage For Borehole Drilling Rig Machines

Product Description

Our Rubber Track are prepared with natural rubber. It possesses very good properties of wear resistance, tear resistance and non-disintegration etc. The adhesion between the rubber and the steel frame is very strong, the replacement is convenient an the service life is long,it is suitable for various vehicle like excavator,pavers,bitumen transportation trucks etc.

Product Tech Details

Rubber Tracks Features

(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.

Product Main Applications

Crawler chassis assembly is mainly used for special occasions, such as military parade, tanks, armored vehicles, etc. What are its advantages: rubber track has the advantages of protecting the ground, rubber track walking system, low noise, low vibration, comfortable riding, etc. It is suitable for situations with high speed and many transfers, and achieves the all-road performance. Reliable electrical instruments and complete machine status monitoring system provide reliable assurance for the driver to operate correctly

Due to the different use methods and soil conditions, the working life of rubber track also varies greatly. Generally speaking, its average life is about 2000 hours. However, when working in rock or easily worn environment, the service life will be halved; On the contrary, the working life will be doubled in a better environment. When the user checks the track and chassis, don't forget to drive again to check the oil level and cleanliness. This part is easy to be ignored, and there is usually less oil left.

Product Working Attentions

(1) It is forbidden to turn sharply on the concrete ground or hard road, otherwise the track core will be worn and the belt body will be twisted.

(2) When crossing the ridge, it is necessary to move forward at a low speed at right angles to the ridge. When crossing the ridge with a height of more than 10 cm, it is necessary to use a springboard, otherwise the track may fall off or be damaged.

(3) It is forbidden to walk and turn sharply for a long time on the gravel road, otherwise the track will be accelerated, worn and cracked.

(4) Do not work on rotten fields, otherwise the track will slip and make the traveling mechanism accumulate mud and tangle grass, affecting the normal operation.

(5) If stones or foreign matters enter between the track and the underframe, stop the operation immediately and remove the stones or foreign matters.

(6) After working on the beach or in the field sprinkled with chemicals, the track shall be washed in time.

What are the regulations for the installation of drill tower guy ropes?

The derrick guy line is used to enhance the stability of the derrick and prevent it from collapsing due to strong winds. Therefore, it is required to set one guy line for each leg of the derrick below 17 meters, which is tied at 3/4 of the tower height, and one guy line for each leg of the derrick above 22 meters, which is tied at the top of the ceiling beam and at the waist of the tower. Generally, a guy rope with a diameter of 12.5 or 15.5mm is used, and its length should be determined based on the height of the drill tower. That is, the angle between the base point of the guy rope and the ground is generally not greater than 45 degrees. And the position of each tower leg guy line must be symmetrical. At the base point of the guy line in hard stratum, steel drill drilling can be used to drill holes, and then the steel drill, waste drill rod, or steel bar pin rod can be inserted into the eye hole and fixed with cement pouring. In soft ground, deep pits no less than 1 meter long can be dug, wooden piles or waste casings with a length of about 1 meter can be installed, filled with earth and rock, and compacted. After that, tighten the tensioner to tighten the tension rope.
