Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

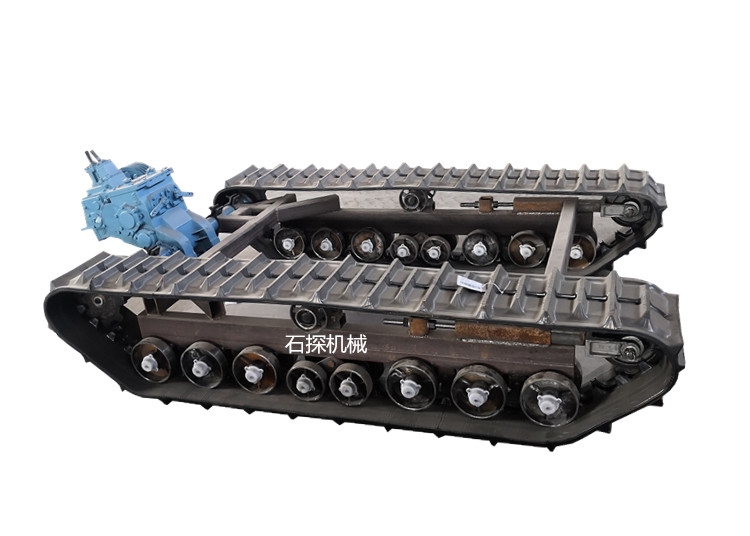

Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs

Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs
Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs

Large Image :  Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs

Product Details:
Place of Origin: Jinzhou ,China
Certification: ISO
Model Number: Shitan T1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Customzied Quotation list
Packaging Details: 1*20 FCL
Delivery Time: 5 days after advance payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 Sets/month
Detailed Product Description
Brand Name: Shitan Product Name: Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs
Loading Capacity: Customized Raw Material: Alloy Steel
OEM: Acceptable Power: Diesel Engine
Warranty: 12 Month After Sale Service: Video Support
Application: Drilling Rigs Speed: Customized
High Light:

Drilling Rigs Crawler Track Undercarriage

,

Large Loading Crawler Track Undercarriage

,

Large Loading Capacity Steel Crawler Track

Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs





Product Description



Crawler undercarriage, including engineering machinery undercarriage, skid steer loader undercarriage, agricultural machinery undercarriage, garden machinery undercarriage and the matched spare parts: track roller, top roller, sprocket, idler and rubber track.



Product Specification



Type : 4 T Bucket size: 2350*1800*500 mm
Size: 3600*1850*1600mm Crawler material: Rubber material
Track ground length: 1700 mm Loading &unloading method: Hydraulic dump
Motor size: 490 Gear type: drawbar
Gear: +3 forward gear+1 reverse gear The height from the bottom of the bucket to the ground: 700 mm
Steering method: Clutch brake steering Start method: Electric start
Speed : 0-18 Kilometer per hour Crawler size: 4000* 900*540 mm



Product Advantages



Our Rubber Track are prepared with natural rubber. It possesses very good properties of wear resistance, tear resistance and non-disintegration etc. The adhesion between the rubber and the steel frame is very strong, the replacement is convenient an the service life is long,it is suitable for various vehicle like excavator,pavers,bitumen transportation trucks etc.



Product Application



Crawler chassis assembly is mainly used for special occasions, such as military parade, tanks, armored vehicles, etc. What are its advantages: rubber track has the advantages of protecting the ground, rubber track walking system, low noise, low vibration, comfortable riding, etc. It is suitable for situations with high speed and many transfers, and achieves the all-road performance. Reliable electrical instruments and complete machine status monitoring system provide reliable assurance for the driver to operate correctly

Due to the different use methods and soil conditions, the working life of rubber track also varies greatly. Generally speaking, its average life is about 2000 hours. However, when working in rock or easily worn environment, the service life will be halved; On the contrary, the working life will be doubled in a better environment. When the user checks the track and chassis, don't forget to drive again to check the oil level and cleanliness. This part is easy to be ignored, and there is usually less oil left.



Crawler drill has the following main features



1. Crawler has strong carrying capacity, can withstand 2.5 tons of weight, large climbing capacity, simple operation and high drilling efficiency.

2. The four feet of the crawler chassis are hydraulic feet, and each foot is controlled separately, so that the entire crawler platform can be stably fixed on the ground.

3. Crawler platforms and drilling rigs are welded with square tubes. The design structure has high strength and good rigidity, and can be used for drilling rigs below 300 meters.

4. Crawler drilling rigs can be loaded with north exploration, long exploration, balance exploration, wide exploration and heavy exploration drilling rigs. Crawler tower can be customized according to the customer's drilling rigs.

Use and maintenance of crawler drilling rig:

1. The operating temperature of rubber track is generally - 25 ° -+55 °.

2. The salt of chemicals, engine oil and sea water will accelerate the aging of the track. Clean the track after use in such an environment.

3. The road surface with sharp bumps (such as steel bars, sharp stones, etc.) will cause damage to the rubber track. Try to avoid these sharp bumps.

After the drilling is completed, the tower shall be put away to avoid personal injury. It is not allowed to walk without putting the tower away for convenience.

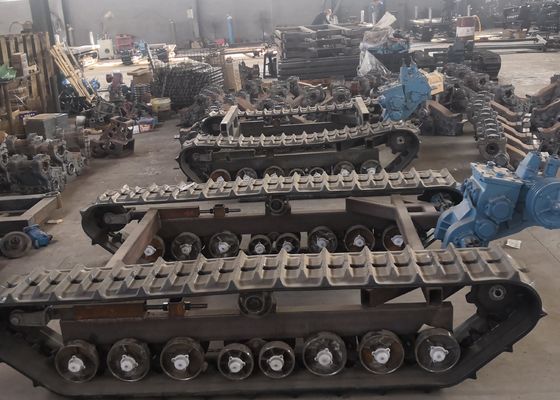

Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs 0

Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs 1

Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs 2

Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs 3Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs 4Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs 5Diesel Engine Large Loading Capacity Crawler Track Undercarriage For Drilling Rigs 6
