High Strength Construction Rubber Crawler Track Undercarriage For Transportation

Construction Rubber Crawler Track Platform Undercarriage For Transportation

Product Description

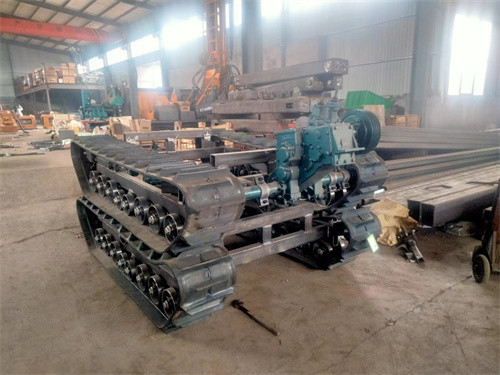

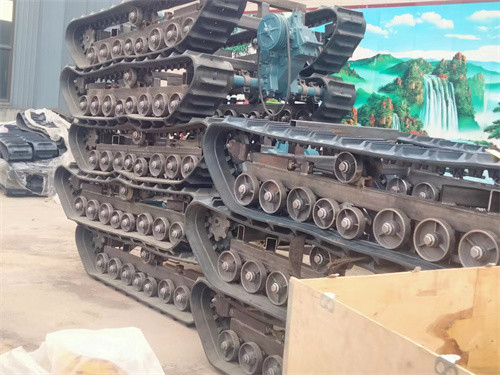

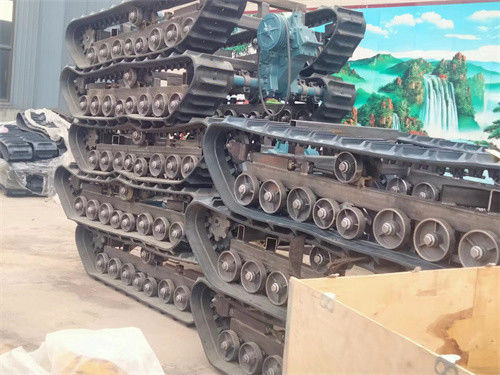

This Crawler Undercariage is specially designed and manufactured for small equipments.,use low speed and high torque motor, the driving force is bigger, the crawler track and the chain plate are fixed with screw for maintenance convenience,is equipped with mechanical brake,will not slip away in the rampway,Crossbeam flange connection, easily disassembly and assembly

Engineering machinery undercarriage, skid steer loader undercarriage, agricultural machinery undercarriage, garden machinery undercarriage and the matched spare parts: track roller, top roller, sprocket, idler and rubber track.


Product Tech Details

Product Features

Our Rubber Track are prepared with natural rubber. It possesses very good properties of wear resistance, tear resistance and non-disintegration etc. The adhesion between the rubber and the steel frame is very strong, the replacement is convenient an the service life is long,it is suitable for various vehicle like excavator,pavers,bitumen transportation trucks etc.

Product Applications

This kind undercarriage is widely used in various excavator, mobile crusher, drilling rig, mine machinery, fire-fighting robot, underwater dredging equipment ,aerial working platform, transport lifting equipment, agricultural machinery, garden machinery, special working machinery, field construction machinery, exploratory machinery, loader, static detection machinery, gadder , anchor machinery and other large, medium and small machinery.

Product Working Attentions

(1) It is forbidden to turn sharply on the concrete ground or hard road, otherwise the track core will be worn and the belt body will be twisted.

(2) When crossing the ridge, it is necessary to move forward at a low speed at right angles to the ridge. When crossing the ridge with a height of more than 10 cm, it is necessary to use a springboard, otherwise the track may fall off or be damaged.

(3) It is forbidden to walk and turn sharply for a long time on the gravel road, otherwise the track will be accelerated, worn and cracked.

(4) Do not work on rotten fields, otherwise the track will slip and make the traveling mechanism accumulate mud and tangle grass, affecting the normal operation.

(5) If stones or foreign matters enter between the track and the underframe, stop the operation immediately and remove the stones or foreign matters.

(6) After working on the beach or in the field sprinkled with chemicals, the track shall be washed in time.
