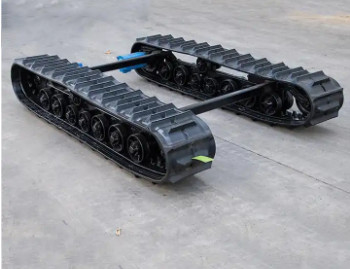

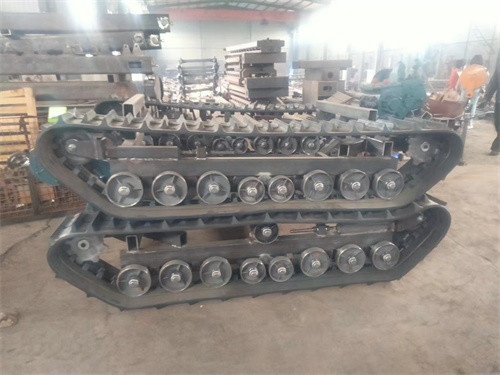

High Durability Engineering Crawler Track Undercarriage For Easy Transportation

High Durability Engineering Crawler Track Undercarriage For Easy Transportation

Product Description

It has been widely applied in drilling machines (core drill, horizontal directional drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs.If you are just in need to customize a rubber track chassis, please feel to consult us at any time.

Product Tech Details

Crawler drill has the following main features

1. Crawler has strong carrying capacity, can withstand 2.5 tons of weight, large climbing capacity, simple operation and high drilling efficiency.

2. The four feet of the crawler chassis are hydraulic feet, and each foot is controlled separately, so that the entire crawler platform can be stably fixed on the ground.

3. Crawler platforms and drilling rigs are welded with square tubes. The design structure has high strength and good rigidity, and can be used for drilling rigs below 300 meters.

4. Crawler drilling rigs can be loaded with north exploration, long exploration, balance exploration, wide exploration and heavy exploration drilling rigs. Crawler tower can be customized according to the customer's drilling rigs.

Product Application

Crawler chassis assembly is mainly used for special occasions, such as military parade, tanks, armored vehicles, etc. What are its advantages: rubber track has the advantages of protecting the ground, rubber track walking system, low noise, low vibration, comfortable riding, etc. It is suitable for situations with high speed and many transfers, and achieves the all-road performance. Reliable electrical instruments and complete machine status monitoring system provide reliable assurance for the driver to operate correctly

Due to the different use methods and soil conditions, the working life of rubber track also varies greatly. Generally speaking, its average life is about 2000 hours. However, when working in rock or easily worn environment, the service life will be halved; On the contrary, the working life will be doubled in a better environment. When the user checks the track and chassis, don't forget to drive again to check the oil level and cleanliness. This part is easy to be ignored, and there is usually less oil left.

Product Working Attentions

(1) It is forbidden to turn sharply on the concrete ground or hard road, otherwise the track core will be worn and the belt body will be twisted.

(2) When crossing the ridge, it is necessary to move forward at a low speed at right angles to the ridge. When crossing the ridge with a height of more than 10 cm, it is necessary to use a springboard, otherwise the track may fall off or be damaged.

(3) It is forbidden to walk and turn sharply for a long time on the gravel road, otherwise the track will be accelerated, worn and cracked.

(4) Do not work on rotten fields, otherwise the track will slip and make the traveling mechanism accumulate mud and tangle grass, affecting the normal operation.

(5) If stones or foreign matters enter between the track and the underframe, stop the operation immediately and remove the stones or foreign matters.

(6) After working on the beach or in the field sprinkled with chemicals, the track shall be washed in time.
