| Product Name: | Water Well Drilling Rig | Control:: | Hydraulic |
|---|---|---|---|
| Drilling Depth: | 200m | Open Hole Caliber: | 75--300mm |
| Drilling Diameter: | 300mm | End Diameter: | 75mm |
| Usage: | Water Well Drill | Drilling Angle: | 90°~75° |
| High Light: | water well borehole drilling rig,water borehole drilling equipment |
||

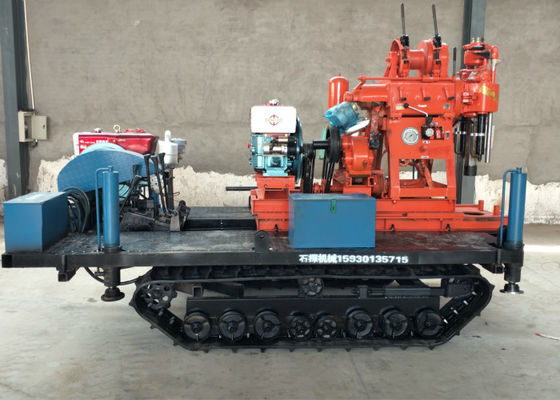

GK200 Good Performance Water Well Drilling Rigs Manufacturers
Features
1. This machine gained 3 national practical new-type patents invention.
2. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong rigidity and big transfer torque.
3. To be provided with cone plate friction clutch, being facile to operate, with big transfer torque.
4. To adopt rolling bearing type hoist, with wide brake band and big lifting capacity.
5. To be equipped with speed reducer and sludge pump, being integrated structure.
6. The entire machine is featured by strong adaptability, high motive power, low cost and broad compatibility.
7. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.
8. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
Application
Water well drill, bore hole well drill, coring drill, rock sampling, geological general investigation and exploration, road and tall building basic exploration, kinds of hole in concrete structure, civil wells and earth central air conditioner, etc
Techinical paramater
| Main machine technical parameter | ||
| Drilling depth | 200m | |
| Drilling diameter | 300mm | |
| End diameter | 75mm | |
| Drilling pipe diameter | 50mm | |
| Drilling angle | 90°~75° | |
| Drilling weight(no include power) | 975kg | |
| Unity machine dimensions | 2.75×0.95×1.6m | |
| Spindle | ||
| Spindle speed | 64,128,287,557r/min | |
| Spindle stroke | 450mm | |
| Hoist | ||
| Max.single line hoisting capacity | 2400kg | |
| Reel lifting speed | 17,35,75,151r/min | |
| Reel diameter | 140mm | |
| Steel wire rope diameter | 13mm | |
| Steel wire rope cubic measure | 35m | |
| Hug floodgate diameter | 260mm | |
| Hug floodgate belt width | 70mm | |
| Distance between drill and hole | 400mm | |
| Power | ||
| Diesel engine | s1110 Model, 20HP | |
| Electric Motor | Y160M—4 ,15kw 1440r/min | |
| Mud pump | ||
| Type | Horizontal single urn twin-action | |
| Displacement | 170L/min | |
| Maximum pressure | 3.0Mpa | |
| Work pressure | 1.5Mpa | |
| Water inlet caliber | 40mm | |
| Water to exit caliber | 30mm | |
| Triangle conveyer belt | B1728mm | |
| Hydraulic pump | ||
| specification | CBT—F—314 | |
| Triangle conveyer belt | B1100×1 | |
