Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Product Name: | Well Drilling Rig |
|---|---|---|---|
| Power Type: | Diesel | Depth: | 150m |
| Usage: | Water Well,railways, Core Drilling, | Warranty: | 1 Year |
| Condition: | New | Engine: | Diesel Engine |
| High Light: | 150m water drilling rig,140r/min water drilling rig,150m portable well drilling rig |
||

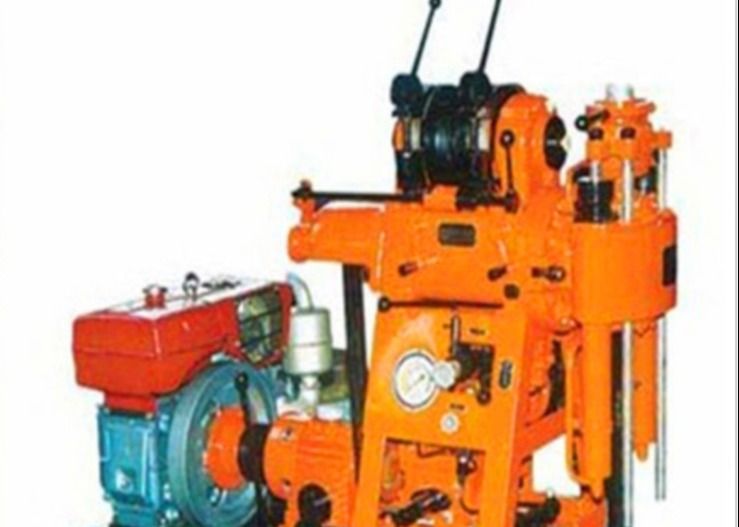

Durable Drill Portable Hydraulic Drill Deep Well Drilling Rig
Well Drilling Rig Describe:
It is suitable for engineering geological survey of railway, hydropower, transportation, bridge, dam foundation and other buildings; geological core drilling and physical investigation; small grouting hole and blasting hole drilling; small water well drilling.
Well Drilling Rig Advantage:
1. water well drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,reduce manual labor workers.
2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,easy to operate, safe and reliable.
3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
4 The handle centralized, easy to operate.
5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
| Drilling depth(m) | 150 |
| Maximum opening diameter(mm) | 219 |
| The final hole diameter(mm) | 73 |
| Rod diameter(mm) | 42/50 |
| Spindle speed (r/min) | 140/295/470/790/1010 |
| Spindle stroke(mm) | 450 |
| Hoisting capacity (kn) | 14 |
| Steel wire diameter(mm) | 9.3 |
| Maximum pressure (mpa) | 1.2 |
| Working pressure (mpa) | 0.7 |
| displacement(l/min) | 150 |
| Hydraulic pump pressure (mpa) | 1.2 |
| Hydraulic pump rotation speed (r/min) | 1800 |
| Matched driving power (diesel engine and motor) | S1105 diesel engine and 11kw motor |
