Mining Core Full Rotary Hydraulic Water Well Drilling Rig Crawler Surface Underground

Name: Mining Core Full Rotary Hydraulic Water Well Drilling Rig Crawler Surface Underground
Brand: JINZHOU SHITAN
SKU: GK200
Rating: 4.9 (178 reviews)

Large Image : Mining Core Full Rotary Hydraulic Water Well Drilling Rig Crawler Surface Underground

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Model Number:	GK200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Certification:	ISO9001	Name:	Geological Drilling Rig Machine
Type:	Rotary Drilling Rig	Power Type:	Diesel
Usage:	Water Well	Voltage:	380V
Power(W):	15KW	Weight:	626KGS
Condition:	New	Equipment Size(L * B * H):	1730 * 860 * 1360 (mm)
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support	Warranty:	1 Year
High Light:	rotary hydraulic water well drilling rig , crawler hydraulic water well drilling rig , rotary engineering drilling rig

Mining Core Full Hydraulic Crawler Surface Underground Engineering Drilling Rig

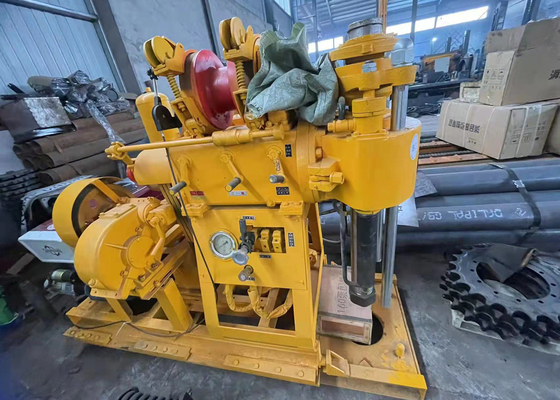

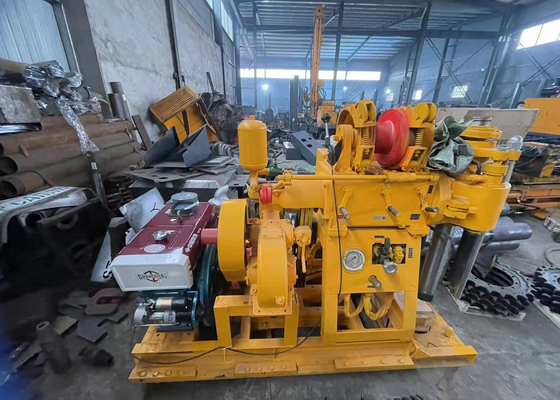

GK200 Brief introduction of drilling rig

GK200 The core drill is a widely applicable hydraulic feeding drill, which has the characteristics of large power, large lifting force and transmission torque headlamp. The speed of hexagonal vertical shaft ranges from 71r / min to 790r / min. It is suitable for engineering geological exploration in industrial and civil construction, railway, bridge, hydropower and other departments and drilling of small water wells.

GK200 Hydraulic Portable 200m Water Well Drilling Machine

Drilling depth	200m
Open hole diameter	75-300mm
End hole diameter	75mm
Active drill rod	53/59*4200mm
Rod diameter	50,60mm
Drill angle	90°-75°
Matched power(diesel power)	15kw/2200r/min
Dimension	28009501700mm

Engineering Drilling Rig Main features:

1. It has an oil pressure feeding mechanism to improve the drilling efficiency and reduce the labor intensity of workers.
2. It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.
3. The drilling rig is equipped with upper ball clamp clamping mechanism and hexagonal active drill pipe, which can reverse the rod without shutdown, with high working efficiency, convenient operation, safety and reliability.
4. The structure is compact. The water pump is installed on the drilling rig and occupies a small area.
5. The drilling rig has the advantages of compact structure, small volume, light weight, strong decomposability and easy relocation. It is suitable for working in plain or mountainous areas.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A:Sorry, free sample is not available.

Q: What is your terms of payment ?

A: Usually we accept T/T 30% in advance, then pay the 70% T/T before shipping.

Q:How to order?

A:Please send us your inquiry with detail item description or with Model number.

If there is no packing demand we take it as our regular exported standard packing.

We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.

After you send your detail requirement, we provide quotation to you.

Q:Can I expect a quality products?

A:All the production and processing are strictly according to international standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
