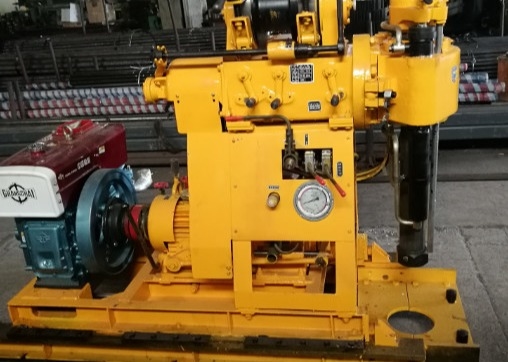

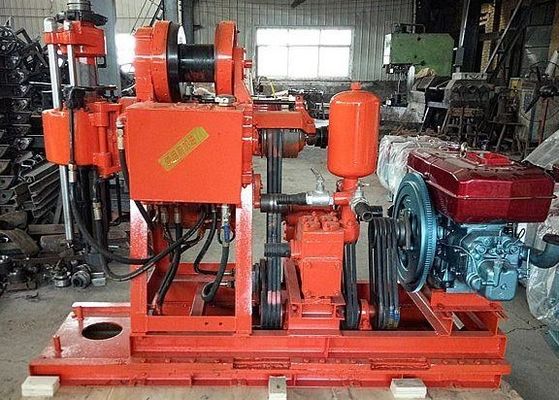

Construction Engineering Small Borehole XY-1A Geological Drilling Rig Machine
XY-1A Geological Drilling Rig Machine Introduction
The diesel engine is 1105, 18 HP , the sliding stroke is 350mm, the water pump pressure is 1.2MPa, the winch lifting force is 10kN, and the weight is 500kg. XY-1 A drilling rig is a portable drilling machine with oil pressure feeding.
XY-1A Geological Drilling Rig Machine Technical Data
| Drilling diameter(mm) | 75,91,110,130,150 |
| Drilling depth (m) | 150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,43 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1700 * 780 * 1274 (mm) |
| Rig weight (except engine) | 540 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 140,295,470,790,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 0.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope)(KN) | 11 |
| Reel speed (r/min) | 36,76,121 |
| Reel circumferential speed(m/s) | 0.31,0.66 ,1.05 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 35 |
| Brake diameter(mm) | 252 |
| Brake band width (mm) | 50 |
| Water pump | |
| Pump type | Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) | 95(77) |
| Work pressure (Mpa) | 0.7 |
| Cylinder diameter (mm) | 80 |
| Piston stroke(mm) | 100 |
| The maximum allowable pressure (Mpa) | 1.2 |
| Oil pump | |
| Oil pump type | Gear pump |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
XY-1A Geological Drilling Rig Machine Features:
1, The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.
2 ,The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability.
3 ,Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.
4, Handle concentration, easy operation.
5, It is compact, small in size, light in weight, strong in decomposition and easy to remove .It can be used in plains and mountains.
